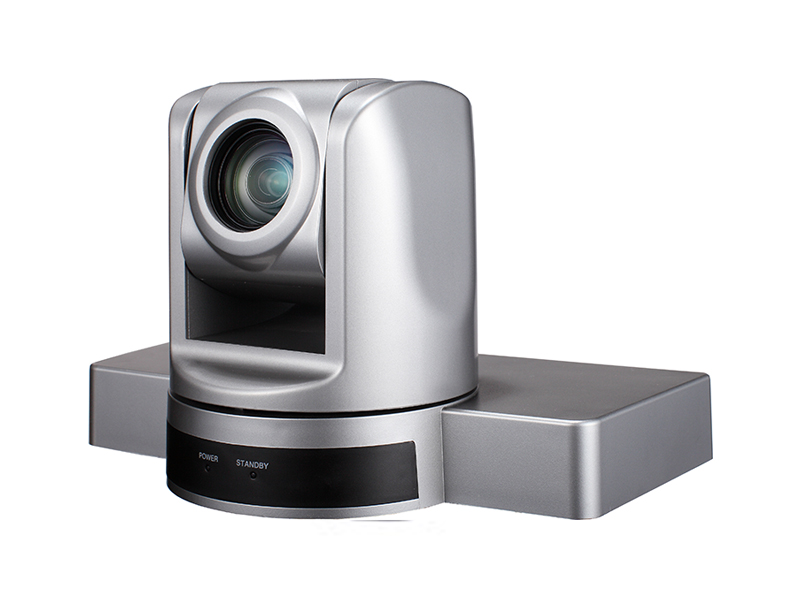

D57R HD Video Conference Camera|VIDEO CONFERENCE CAMERA|Domenor Supply:info@domenor.com

◆ New item, HD format colorized conference camera ,it brings a new experience in visual.

◆ Easy to control, multiple video output interface,applicable to variety high definition projects.

◆ Support HDSDI, DVI, CVBS( 16:9/4:3 can be chosen)

◆ Video output signal .Can select the video format through coding switch

◆ Built-in zoom camera decoder, impact structure, and nice appearance

◆ Pan speed:1.7 ~100 /s Tilt:1.7 ~80 /s

◆ More than 128 preset

◆ Communications RS232, IR remote control

◆ Protocol PELCO P PELCO D VISCA

◆ Multi-function IR remote control

◆ Image flip function (decided by camera module)

◆ Support multi-vendor video conferencing terminal

◆ Support reversal installation


Camera Module
Sensor	1/2.8 Type Exmor CMOS Sensor
Effective pixels	2Mega-pixel
Zoom	20x Optical
Video output	1080P60/50fps 1080P30/25 1080I60/50 720P60/50fps
Resolution	2200(H) X 1125(V)
Minimum illumination	0.05Lux
Focus length	4.7mm(Wide)~94mm(Tele)
View of angle	Horizontal: 55.5°(Wide)~3.0°(Tele)
Iris	Auto
Focus	Auto/Manual
White balance	Auto/Manual
BLC	ON/OFF
SNR	>50db
shutter	1/60~1/10000
Specification
Manual speed	Pan：1.7°~100°/s
Manual speed	Tilt：1.7°~90°/s
Preset speed	320°/S
Rotation	Pan:±173°，Tilt:－30° ～＋90°
Speed proportion	Auto-adjust the speed per the focus length
Preset	9presets can be set via remote controller,Total 128 presets
Sync model	Internal
Decoder	Built-in

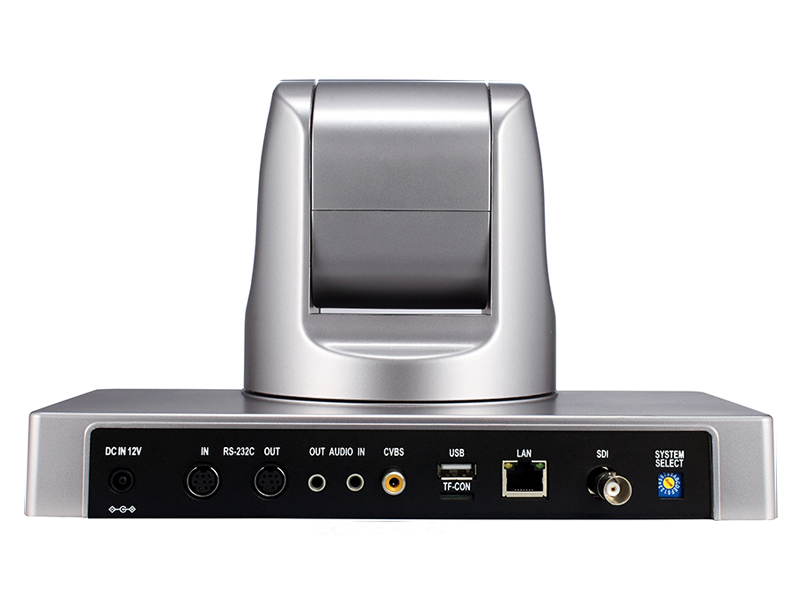

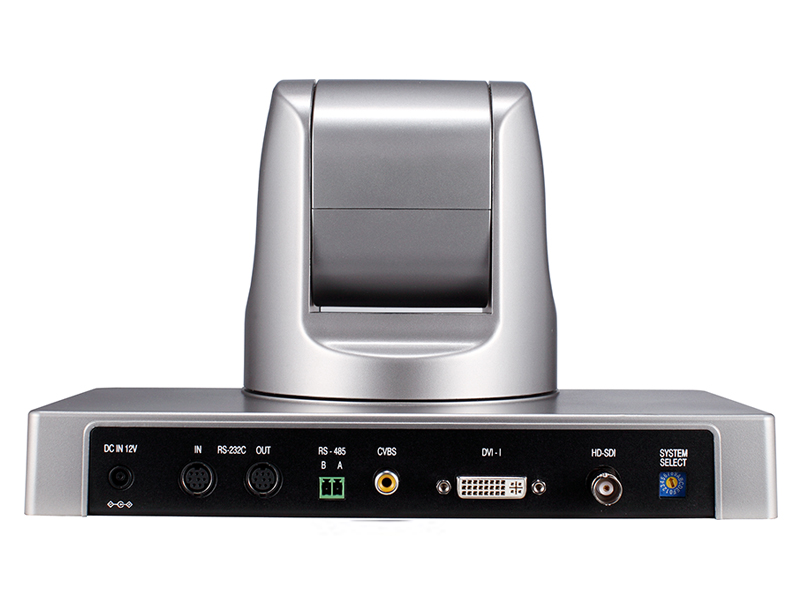

Video output	DVI-I HD-SDI
Protocol	PELCO-P ,PELCO-D, Visca
Baud rate(RS485)	2400bps,4800bps,9600bps,19200bps
Interface	RS-232(8-pin mini DIN）conteol/ VISCA protocol/9600bps
Work temperature	-10℃～+50℃(32~50°F）
Environment humidity	0～95%（non-condensation)
Power supply	DC12V
Power consumption	12W

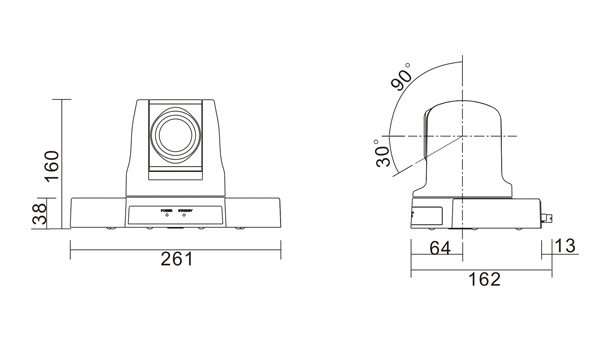

Dimension(HXΦ)	261X162X160mm
Gross weight（no bracket）	3.3KG
Protocol	PELCO-D、PELCO-P、VCL、VICON、SAE、HUNDA
Baud rate	2400／4800／9600/19200 bps
ADD	1～255
Temperature	-40℃～+60℃
Humidity	0～95%（No condensition）
Protection grade	IP66, TVS4000V lightning-proof, surge-proof, all-day defend cover
Power supply	DC12V±2V
Power comsumption	30W
Dimension	411210269(H)
Gross weight	12kg

?
