D87 IR Mini High Speed PTZ|NETWORK CAMERAS|Domenor Supply:info@domenor.com

Products Category

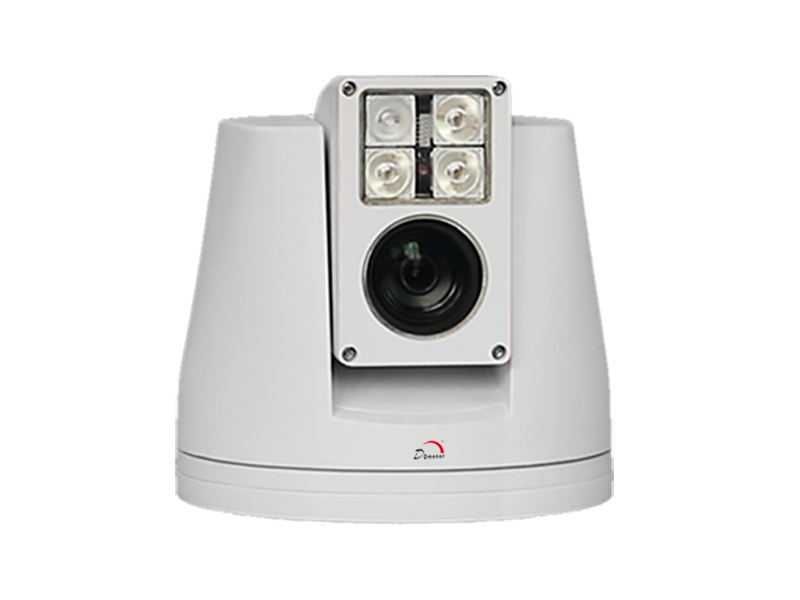

D87 IR Mini High Speed PTZ

video conference, mini heavy-duty camera for vehicle, simple structure
E-mail:info@domenor.com

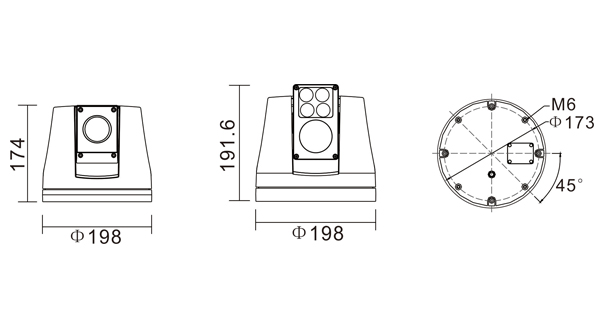

Detail Technical parameters Product size Download Inquiry

◆ High-strength casting cover, anti-shocking, corrosion-proof, IP66

◆ Special power design, play a protective effect of vehicle's start, emergency brake and engine died.

◆ rating impact load 3.4g accelerate

◆ Built-in zoom camera, decoder, integrated structure, smart outline, pan 360° continuously, Tilt(-30° ~＋90°), no spot

◆ All-weather environmental design, -40℃ ~ + 60℃

◆ 128 presets (titles can be set); Tour is based on presets, speed & park time of presets can be set.

◆ Built-in OSD menu, can change information and parameter of dome through menu, also can set and call presets, tour, scan, pattern, camera mode and display name etc.

◆ 8 programmable zones, 4 pattern, and each record time is not less than 180s.

◆ 4 scan, support scan between left and right limit at an appointed speed.

◆ Park action function, can auto-call presets or start-up tour, pattern and scan after dome idle for a period of time

◆ Real clock function, can Set auto-call presets or start-up tour, pattern, scan in particular time by built-in OSD Menu.

◆ Temperature display function, can survey the temperature inside of dome.

◆ 1Alarm Input/ 1 Output, support privacy masking zone

◆ Support Micro SD Card storage (Factory default setting)

◆ Built-in constant temperature device, wave-proof

◆ Support Multipliable Network protocol: TCP/IP、UDP、 RTSP、RTCP、HTTP、DDNS、FTP、NTP、PPPOE、SMTP etc

◆ Inner insert Web server, Support IE Explorer video、Parameters、Upgrade、 Manage user permissions.

◆ Built-In ONVIF Protocol, It can computable with others ONVIF Platform or equipments

◆ Lightning-proof protection for video, communication, power access terminal are designed with 2 ~ 3 protection grade


Specification
Manual speed	Pan（ 0.4 ~ 80° /s）
	Tilt（0.4 ~ 60° /s）
Preset speed	Pan 160° /s, tilt 120° /s
Rotation	Continuously 360°；tilt -30～90° with auto-flip
Speed Proportion	As the length of focus, to auto-adjust the speed
Preset	128 preset, title can be edited
Auto-flip	Tilt down 90°, with auto-flip 180°
Scan	355° programmable ，4 scan
Display zone	8 programmable zones with titles
Alarm function	1alarm input/1output
Sync Model	Internal
Decoder	Built-in
Video output	Female BNC
Video compression	H.264 Main Profile; MJPEG/JPEG Baseline compression
Resolution	Master streaming	1920*1080, 1-25(30) fps/sec
	Second Streaming	640480,1-25(30)fps/sec;320240,1-25(30)fps/sec;160*112,1-25(30)fps/sec
Video Bit rate	32Kbps~16Mbps, Support CBR/VBR
Information Display	Dome ID、Presets title、Scan/Tour/Pattern、Zoom Times、Position Direction of camera、Alarm indirection、Date& time
Audio Compression	G.711, G.726 , Support 32K Stereo
Data Storage	VIDEO & Image
Recording	Manual、Auto(circulation、Time、Alarm on/off、Move detection)
Alarm Output	FTP,E-MAIL, Explorer, Management Software
Network Protocol	TCP/IP、UDP、 RTP、 RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP
ONVIF Protocol	Support
Remote View	Computer/PC	IE6.0 or UP, Max 10 User
	Mobile Phone	Support Windows Mobile、Symbian、 Iphone、Android Platform
Remote controlling	RJ45
Baud rate (RS485)	2400
ID range	1～254
Temperature	Indoor -10℃～+50℃；Outdoor -40℃～+60℃
Humidity	0～95%（Non-condensation）
Protection grade	IP66, TVS4000V lightning-proof, surge-proof, all-day defend cover
Power supply	DC 12V
Power consumption	20W
Camera Module
Sensor	1/2.8 Type Exmor CMOS sensor
Video output	1080P30/25,1080I/60(30FPS),1080I/50(25FPS),720P60/50
Scan system	progressive scanning
SYN	Inner
Effective pixels	2Megapixel
Resolution	2200(H) X 1125(V)
Lens	20X Optical
Focus length	4.7mm(Wide)~94mm(Tele)
Minimum focus	1M
View of angle	Horizontal: 58.2°(Wide)~2.85°(Tele)
	Vetical: 45.2°(Wide)~2.09°(Tele)
Iris	Auto
Focus	Auto/Manual
Minimum illumination	Color:1.0 Lux B/W :0.05Lux
White balance	Auto/Manual
BLC	ON/OFF
SNR	>50db
DNR	Support
Electronic shutter	1/60~1/10000
Video output range	1.0+ VP-P
Video output interface	LVDS
WDR	ON/OFF
Mirror	YES
Auto Flip	YES
Sharpness	0-15 Grade
Color Gain	60%-200%
Communication interface	RS232（TTL）
Power supply	DC 12V
Working temperature	-40℃~60℃
