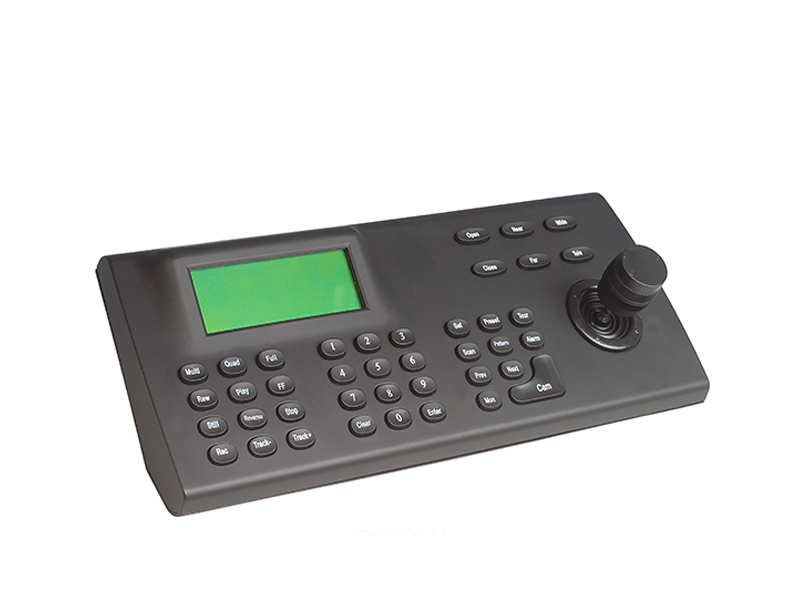

◆  Support DVR Protocol and kinds of matrix

◆  Support 4pcs Keyboard linkage, each keyboard can support   32pcs Domes at most

◆  Expediently and confortably use according to ergonomics   design

◆  Can show display the command menu, Protocol, Current Dome ID, Output Monitor ID, Joystick status

◆  3-Axis joystick can control the speed dome of Pan /Tilt and Zoom In /Out

◆   Built-in multi protocols and baud rate, support all the     shortcut key of dome

◆   Built-in Multi protocol, easily realize the connection with DVR, Matrix, Picture   division equipment, Front-end equipment and others controlling devices

◆  Support all the shortcut key of dome

◆  Alarm function & shortcut key is available

◆  Chinese and English menu can be chosen

Parameter

Power

Power supply：DC     9V-12V

Power Consumption：5W

Size and Weight

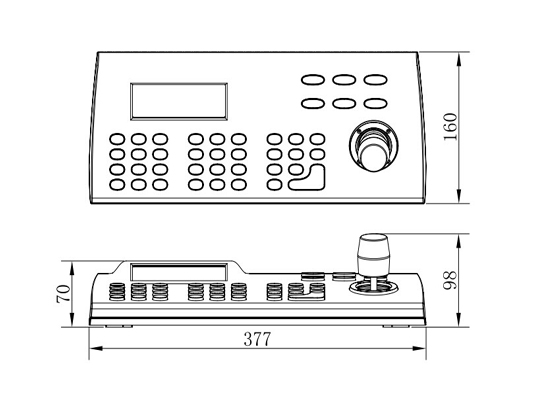

Dimenison (mm)：377*160*98（mm）

Gross weight ：2.0KG

Environment

Environmental Temperature：-10℃～+ 50℃

Humidity：0～95%(No-Condensation)

Communication interface

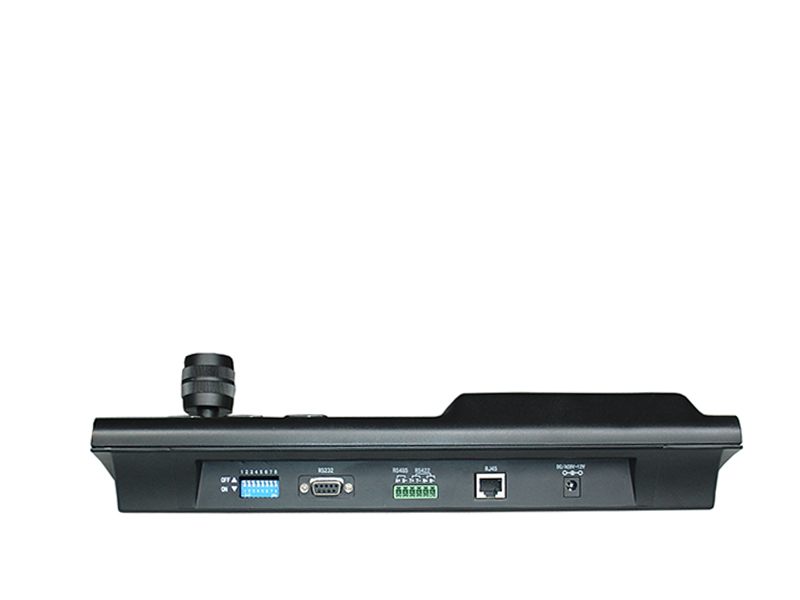

Type of connection: 6Pins   Interface, DB9Pin Female outlet, RJ45

Communication mode: RS232 / RS485 /RS 422

Communication Baud Rate:  2400bps,4800bps,9600bps,19200bps

Transmission distance: 1200M
