D53 IR Mini Speed Dome|HD-SDI PTZ DOME CAMERA|Domenor Supply:info@domenor.com

◆ 10X Optical Zoom, 2Megapixel Resolution 1920 X 1080P

◆ Infrared Night vision distance up to 50M;

◆ Preset speed Pan 240°/s，Tilt120°/s

◆ Pan 360°,No limited position,Tilt105°(-90°～15°)，No spot；

◆ 1 Alarm Input/1 Output; CAN call Preset or Pattern/Scan after alarm.

◆ 128 presets (titles can be set); Tour is based on presets; Speed & park time of presets can be set；

◆ Human design, Faison structures, Easy installation & Maintance;

◆ Built-in OSD menu，8 programmable zones(titles can be set); 4 patterns, each record time is more than 180 seconds;

◆ Park action function, can auto-call presets or start-up tour/pattern & scan after dome idle for a period of time;

◆ Real time function, preset, scan etc action runs based on time sections pre-setting by OSD menu.

◆ Temperature display function, can survey the temperature inside of dome.

◆ Fan enable function, through pre-setting the temperature to start-up the fan.

◆ Built-in TVS4000V lightning-proof, surge-proof and wave-proof

Camera Module
Signal system	1080P60/50fps,1080P30/25,1080i60/50,720P60/50fps
Sensor	1/2.8 Type Exmor CMOS sensor
Scanning system	progressive scanning
effective pixels	2MegaPixel
Zoom	10X Optical Zoom
Resolution	19201080、1280720
Mini illumination	Color：1.0 Lux B/W：0.05Lux
Focal length	f=5.1mm(Wide)~51mm(Tele)
Angle of view	54°(Wide)~4.9°(Tele)
Iris	Auto
Focus	Auto/OPT/Manual
White balance	Auto/Indoor/Outdoor/OPW/Atw/Manual
BLC	ON/OFF
S/N	>50db
Electronic shutter	1/60~1/10000
Video output	LVDS
Video output interface	Female BNC
WDR	ON/OFF
Privacy masking	N/A
Specification
Manual speed	Pan 0.4°~240°
Manual speed	Tilt 0.4°~120°
Preset speed	Pan 240°/s，Tilt 120°/s
Rotation	Pan 360°continuously；Tilt 105°（-90°～+15°）with auto-flip
Speed proportion	According to the length of focus, to auto-adjust the speed
Preset	128，Title can be set
Auto flip	Tilt down 90°, with auto-flip 180°
Scan	355°programmable ，4 scan
Display zone	8 programmable zones with titles
Alarm	4 alarm input/ 1 alarm output
Sync	Internal
Decoder	Built-in
Video output	Female BNC
Communication	RS485
Protocol	PELCO-D,PELCO-P,VCL,VICON,SAE,HUNDA,etc
Baud Rate(RS485)	2400／4800／9600/19200 bps
ID Range	1～255
Working Temperature	-40℃～+60℃
Working Humidity	0~95%（non-condensation）
Protection Grade	IP66, TVS4000V lightning-proof, surge-proof, wave-proof, all-day defend cover
Power supply	DC12V/AC24V
Consumption	24W

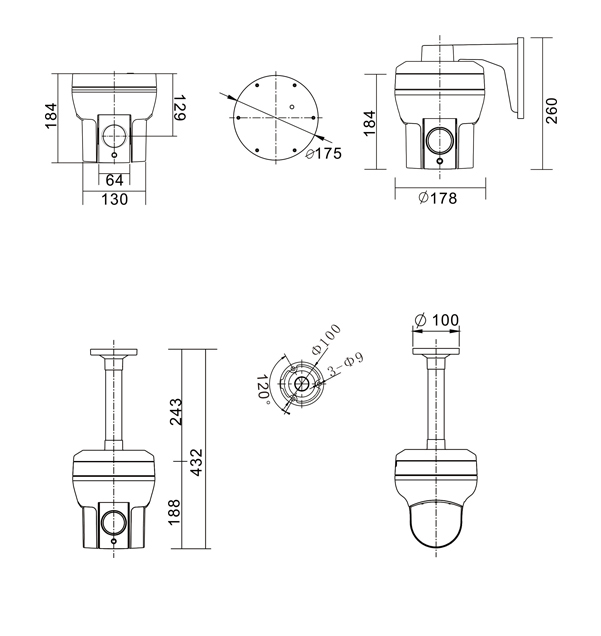

Dimension( HX Φ)	184mm*Φ178
Gross weight(W/O bracket)	3.5kg

?
