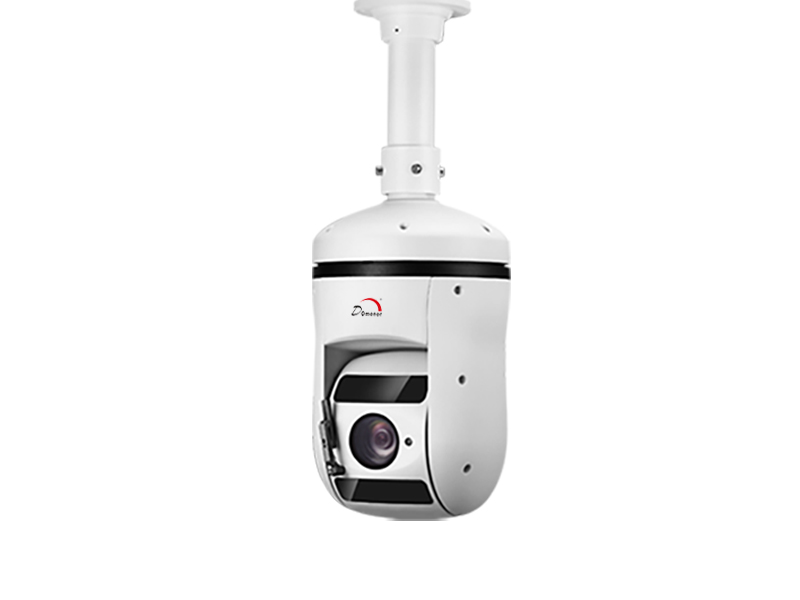

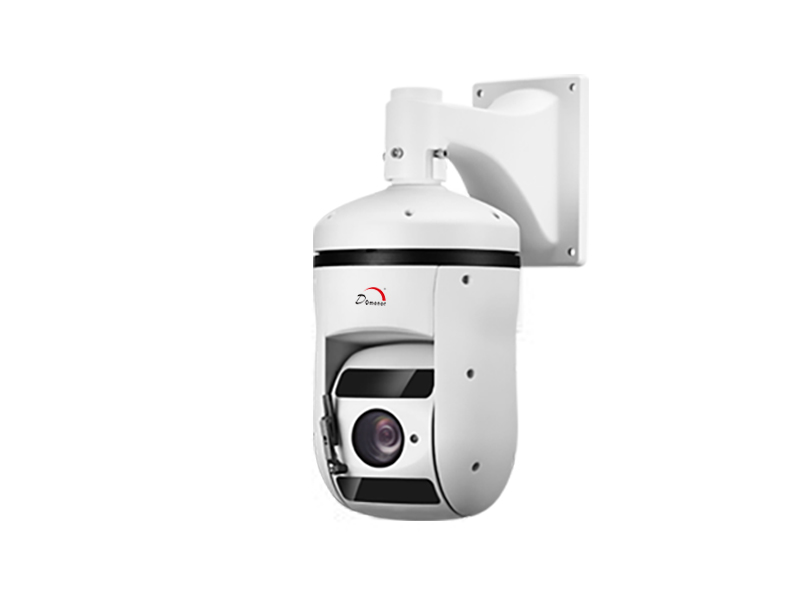

D83 High Speed Dome|ANALOG PTZ DOME CAMERA|Domenor Supply:info@domenor.com

◆ 26x optical Zoom ,12x digital Zoom
◆   Infrared Night vision distance up to 120M
◆   Preset speed Pan 240°/s, Tilt120°/s
◆   Pan 360°,No limited position,Tilt105°(-90°～+30°), No spot
◆   7 Alarm Input/2 Output; CAN call Preset or Pattern/Scan after alarm
◆   128 presets (titles can be set); Tour is based on presets; Speed & park time of presets can be set；
◆   Human design, Faison structures, Easy installation & Maintance;
◆   Built-in OSD menu, 8 programmable zones(titles can be set); 4 patterns, each record time is more than 180 seconds;
◆   Park action function, can auto-call presets or start-up tour/pattern & scan after dome idle for a period of time
◆   Real time function, preset, scan etc action runs based on time sections pre-setting by OSD menu
◆   Temperature display function, can survey the temperature inside of dome
◆   Fan enable function, through pre-setting the temperature to start-up the fan
◆   Built-in TVS4000V lightning-proof, surge-proof and wave-proof


Camera Module
Imaging element	1/4" Sony Exview HAD CCD
Signal system	NTSC/PAL
Scanning system	2:1Interlacing
Effective pixels	752(H)×582(V)
Zoom	26x optical,12x digital
Scan frequency	Pan 15.625KHZ/Tilt 50HZ
Resolution	Color480TVL, B&W570TVL
Minimum illumination	Color 0.7Lux B&W 0.01Lux
Focal length	f=3.5mm～91mm
Angle of view	54.2°(W) ~2.2°(T)
Iris	Auto/Manual
Focus	Auto/Manual
White Blance	Auto/Manual(R/B gain adjustable)
BLC	Off/Auto
S/N	≥50dB
Shutter time	1/1sec～1/10,000sec
Video output	1.0Vp±0.2Vp_P
Video output interface	Female BNC
WDR	No
Privacy masking Zone	24
Specification
Manual speed	Pan：0.4°- 240°/s
Manual speed	Tilt：0.4°- 120°/s
Preset speed	Pan 240°/s，Tilt 120°/s
Rotation	Pan:360°continuously,Tilt:105°(-15°～+90°) or(-30°︿+90°)with auto-flip no blind spot
Speed proportion	Auto-adjust speed per the focus length
Preset	128presets titles can be edited
Auto Flip	Tilt down 90°,with auto-flip 180°
Scan	355° programmable,4 scans
Display zone	8 programmable zones with titles
Alarm	7 alarms input/2 alarms output
Sync	Internal/external
Decoder	Built-in
Interface	Female BNC
Remote controlling	RS485/422 BUS,Manchester,BI-PHASE,Coaxial Video Control
Protocol	PELCO-D/ PELCO-P/ VCL/ VICON/ SAE/ HUNDA about 17protocols
Baud rate(RS485)	2400／4800／9600/19200 bps
ID range	1～254
Environment temperature	-40℃～+60℃
Environment humidity	0～95%（non condensation）
Protection grade	IP66, water proof housing,4000V ligtning proof surge proof
Power supply	AC24V
Power consumption	50W

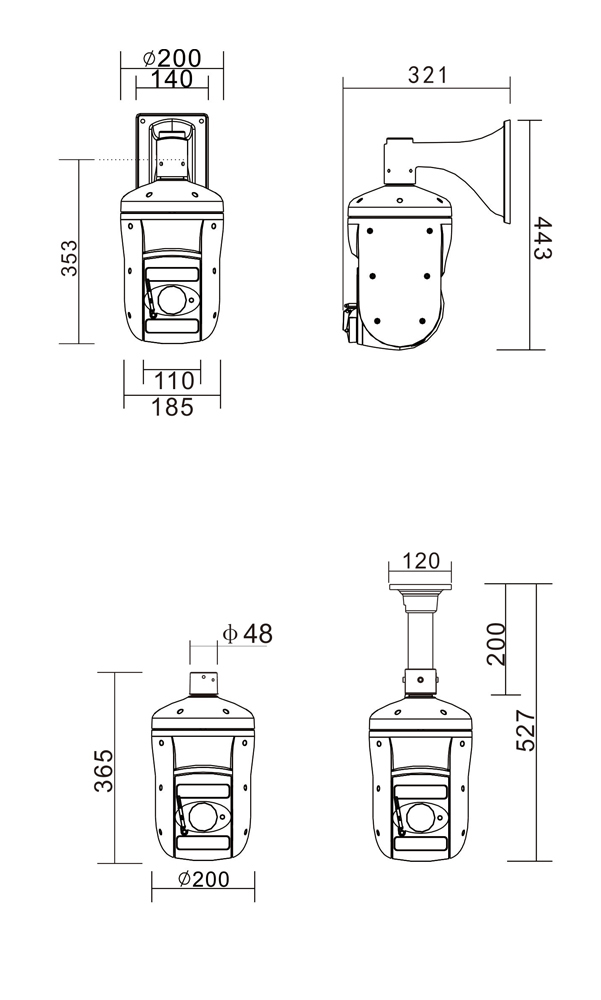

Dimension(HXΦ)	353*Φ200mm(H)
Gross weight（no bracket）	9.5KG

D83 SD Manual
