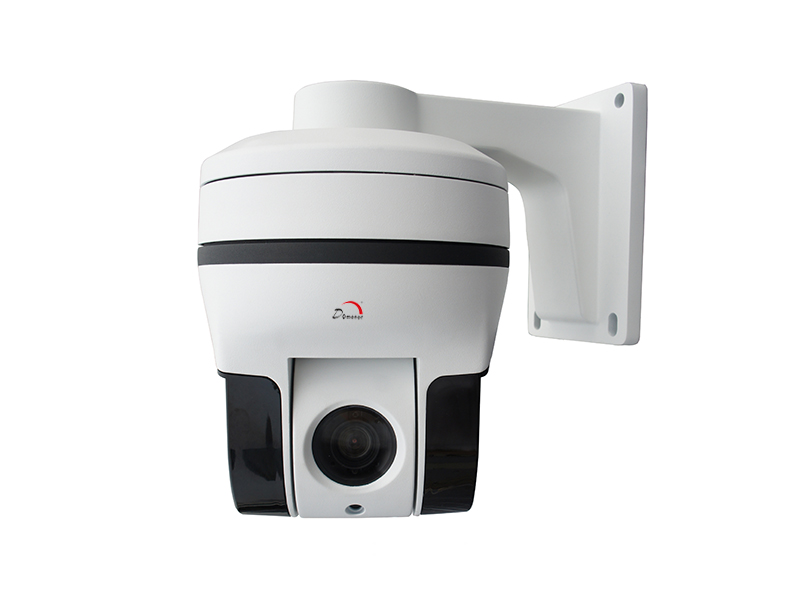

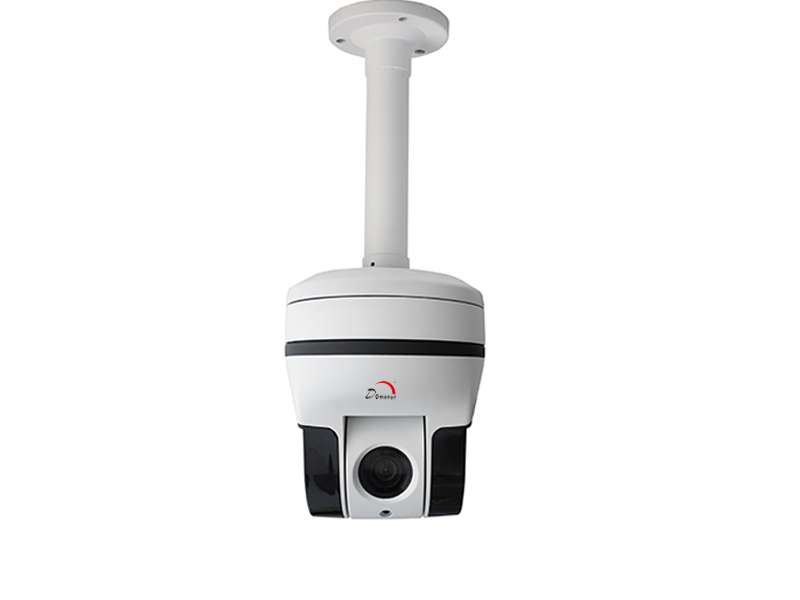

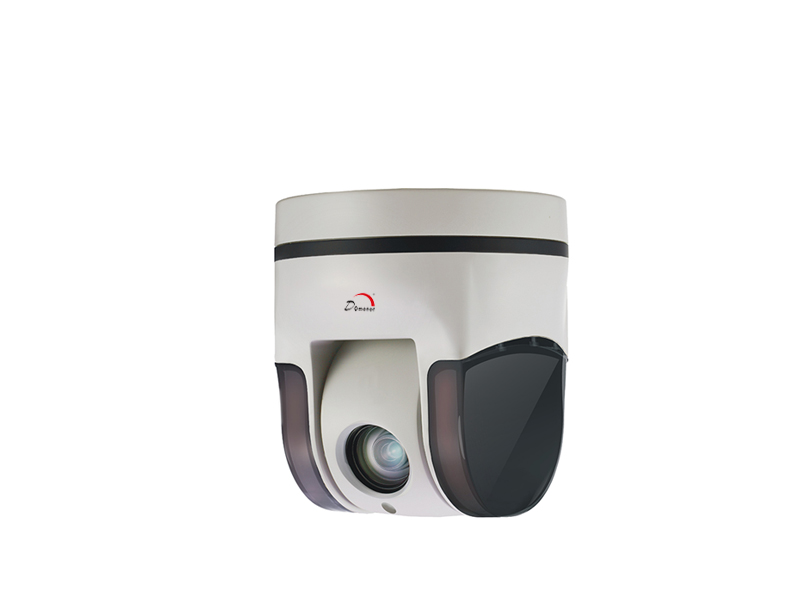

D53 Mini Speed Dome|ANALOG PTZ DOME CAMERA|Domenor Supply:info@domenor.com

◆ Preset speed Pan 240°/s，Tilt120°/s

◆ Pan 360°,No limited position,Tilt105°(-90°～15°)，No spot；

◆ CAN call Preset or Pattern/Scan after alarm

◆ 128 presets (titles can be set); Tour is based on presets; Speed & park time of presets can be set；

◆ Human design, Faison structures, Easy installation & Maintance

◆ Built-in OSD menu，8 programmable zones(titles can be set); 4 patterns, each record time is more than 180 seconds

◆ Park action function, can auto-call presets or start-up tour/pattern & scan after dome idle for a period of time

◆ Real time function, preset, scan etc action runs based on time sections pre-setting by OSD menu

◆ Temperature display function, can survey the temperature inside of dome

◆ Fan enable function, through pre-setting the temperature to start-up the fan

◆ Built-in TVS4000V lightning-proof, surge-proof and wave-proof


Camera Module
Signal system	NTSC/PAL
Sensor	1/4" Interline transfer CCD
Scanning system	2:1 Interleave
effective pixels	752(H) x 582(V)
Zoom	12X Optical Zoom
Scan Frequency	H: 15.625 KHz / V: 50.00 Hz
Resolution	Color:560TVL B/W:680TV
Mini illumination	Color: 0.2Lux/F1.6 (50 IRE) B/W：0.04 Lux/F1.6 (50 IRE)
Focal length	f=3.94 to 46.05mm
Angle of view	H:51.54°(Wide)~4.49°(Tele) / V: 39.28°(Wide) ~ 3.39°(Tele)
Iris	Auto/Manual
Focus	Auto/Manual/One-push
White balance	Auto/Manual
BLC	OFF/BLC/HLC
S/N	52 dB (AGC Off,Weight ON)
Electronic shutter	Auto/Manual (X512~1/50sec ~ 1/120,000sec)
Video output	CVBS : 1.0Vp-p/75
Video output interface	Female BNC
WDR	On/Off
Privacy masking	8
Specification
Manual speed	Pan 0.4°~240°
Manual speed	Tilt 0.4°~120°
Preset speed	Pan 240°/s, Tilt 120°/s
Rotation	Pan 60°continuously; Tilt 105°（-90°～+15°）with auto-flip
Speed proportion	According to the length of focus, to auto-adjust the speed
Preset	128, Title can be set
Auto flip	Tilt down 90°, with auto-flip 180°
Scan	355°programmable, 4 scan
Display zone	8 programmable zones with titles
Alarm	4 alarm input/ 1 alarm output
Sync	Internal
Decoder	Built-in
Video output	Female BNC
Communication	RS485
Protocol	PELCO-D,PELCO-P,VCL,VICON,SAE,HUNDA,etc
Baud Rate(RS485)	2400／4800／9600/19200bps
ID Range	1～255
Working Temperature	-40℃～+60℃
Working Humidity	0~95%（non-condensation）
Protection Grade	IP66, TVS4000V lightning-proof, surge-proof, wave-proof, all-day defend cover
Power supply	DC12V/AC24V
Consumption	24W

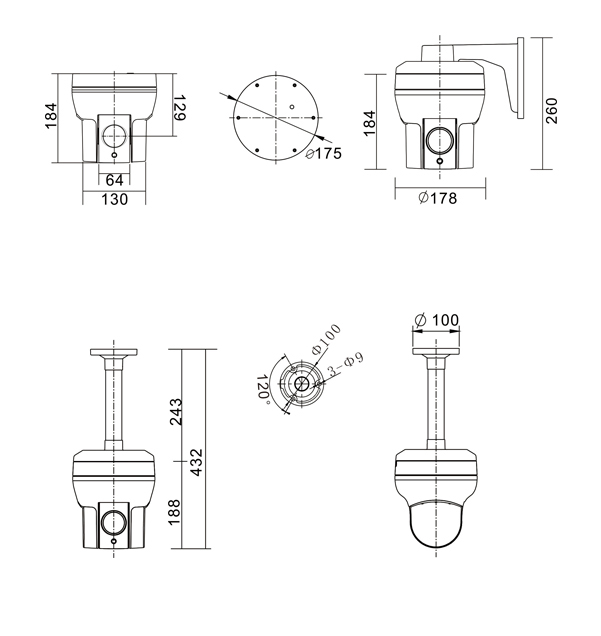

Dimension( HX Φ)	184mm*Φ178
Gross weight(W/O bracket)	3.5kg
