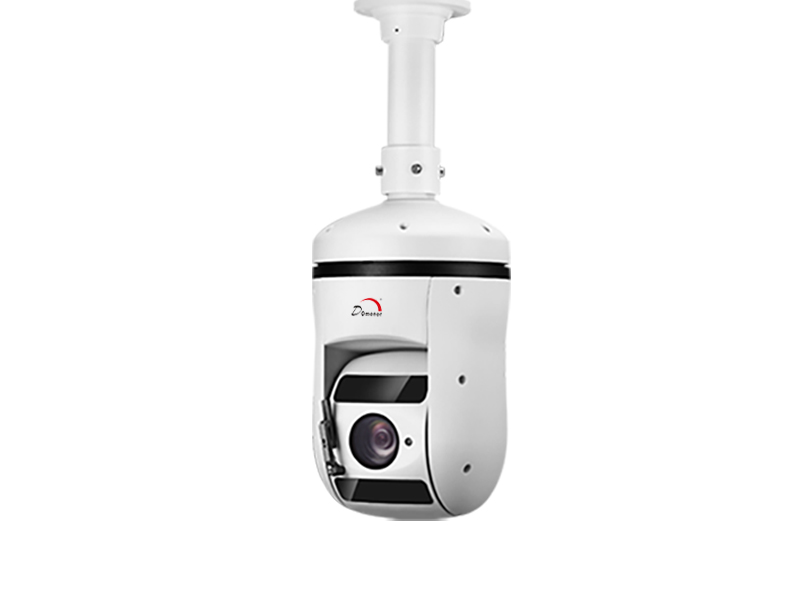

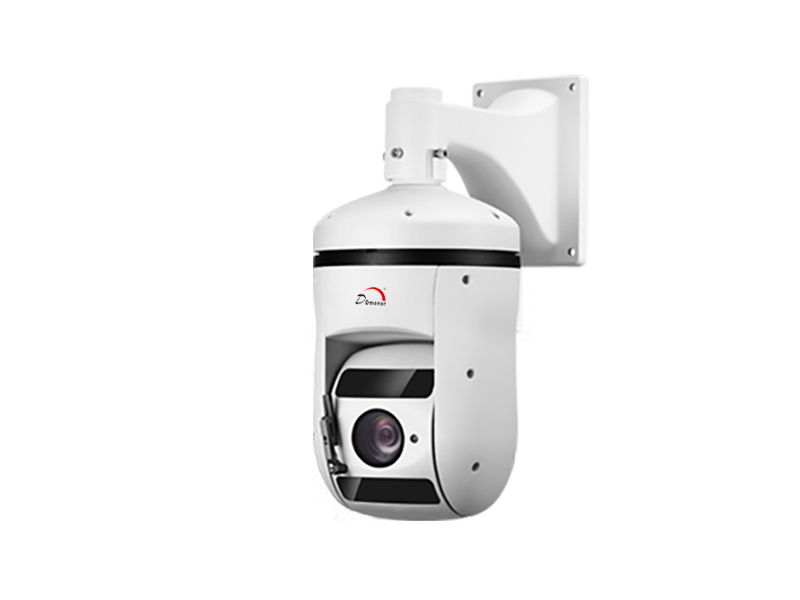

D83 New Outdoor IR PTZ Dome Camera|HD-SDI PTZ DOME CAMERA|Domenor Supply:info@domenor.com

◆ Transmission formats: 1080p/ 720p, transmission distance over 400M

◆ Robust structure, vandal-proof,anti-impact

◆ Clear Night visibility of IR LED light over 80M.

◆ IP/ SDI/TVI/AHD/analog capability

◆ With wiper

◆ Built-in lightning proof, surge proof and wave proof

◆ Built in heater for -40℃ temperature

◆ 360°continuously pan rotation

◆ Tilt range +90~-15°

◆ Preset positioning, Patterns, and multiple scan modes

◆ Designed for minumal maintenance

◆ Excellent heat-dissipation and long lifespan

◆ IP66 all-weather design

◆ Customized capability

◆ Anti-freezing and monition tracking capability

◆ Dual video output capability(SDI/IP, Analog/IP)

◆ PoE capability for indoor using Robust structure, vandal-proof,anti-impact


Camera Module
Imaging element	1/2.8 Type CMOS Sensor
Effective pixels	2MegaPixel
Zoom	36X
Scan frequence	Pan 15.625KHz/Tilt50Hz
Resolution	19201080/ 1280720
Mini illumination	Color 1.0 Lux, B & W 0.05 Lux
Focus length	W4.6mm~ T165.6mm
Angle of view	W61.1°/ T2.1°
Iris	Auto/ Manual
Focus	Auto/ Manual
White balance	Auto/ Manual
Back light compensation	Off/ On
S/N ratio	≥50dB
Electronic shutter	1/60~1/0,000s
Video output	LVDS
Video output interface	Female BNC
Wide dynamic range	Off/On
Privacy masking zone	24
Specification?
Manual speed	Pan：0.4°- 240°/s
Manual speed	Tilt：0.4°- 120°/s
Preset speed	Pan 240°/s，Tilt 120°/s
Rotation	Pan:360°continuously,Tilt:-15°～+90°,no blind spot
Speed proportion	Auto-adjust speed per the focus length
Monitor mode	Manual/Timing
Controlling of IR LED	Auto/ Manual
Preset	128presets titles can be edited
Auto Flip	Tilt down 90°,with auto-flip 180°
Scan	355° programmable,4 scans
Display zone	8 programmable zones with titles
Alarm	7 alarms input/2 alarms output
Sync	Internal/external
Decoder	Built-in
Interface	Female BNC
Remote controlling	RS485/422 BUS,Manchester,BI-PHASE,Coaxial Video Control
Protocol	PELCO-D、PELCO-P、VCL、VICON、SAE、HUNDA about 17protocols
Baud rate(RS485)	2400/4800/9600/19200 bps
ID range	1～254
Environment temperature	-40℃～+60℃
Environment humidity	0～95%（non condensation）
Protection grade	IP66, water proof housing,4000V ligtning proof surge proof
Power supply	AC24V
Power consumption	50W

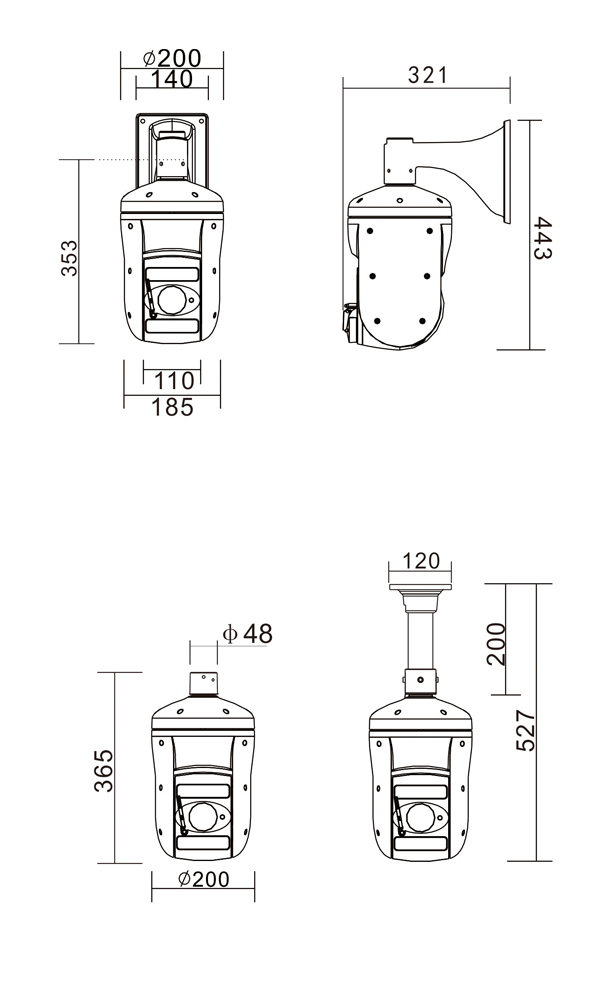

Dimension(HXΦ)	350*Φ200mm(H)
Weight	6.5KG

?
